FIREWALL OPEN SOURCE
- Installation of pfSense directly on the hardware, ready for immediate use.
- Small and compact so it fits anywhere.
- Easy GUI management. Manage pfSense settings via the web.
- Complete firewall appliance solution
LOW TOTAL COST OF OWNERSHIP
- There are no locks or add-ons needed to make the system fully functional.
- No additional usage or resource-based pricing. There are no predefined limits on users, firewall rules, or IPsec tunnels.
- Low energy consumption to save money and be more sustainable.
ADVANTAGES OF APPLIANCE FIREWALL
- Flexible configuration and support for VPN, load balancing, reporting and monitoring.
- Simple package management system for adding powerful functions and features.
SECURE REMOTE ACCESS (VPN)
- Connect via encrypted VPN (Virtual Private Networks) between offices, allow mobile workers to connect securely, or connect to the cloud!
- Use OpenVPN to easily establish VPN connections with other company units.
COMMON USE CASES
- SMB for mid-sized networks
- Small to Medium Branch
- On-Premises Managed Service Provider (MSP) / Managed Security Service Provider (MSSP)
- High-Speed Home or Business Gigabit Connections
- Multiple VPN Connections
SOFTWARE FEATURES
The pfSense firewall appliance is a free, open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, pfSense with Active Directory authentication, or can be configured for other applications and special-purpose devices. Features of this next-generation pfSense security appliance include:
- Stateful packet filtering firewall or pure router
- Per-gateway and per-rule routing policy for failover and load balancing
- Layer 2 Firewall
- Support for IPV6, NAT, BGP
- Captive portal with MAC filtering, RADIUS support, etc.
- VPN: IPsec, OpenVPN, L2TP
- Dynamic DNS client
- Reporting and resource monitoring with real-time information

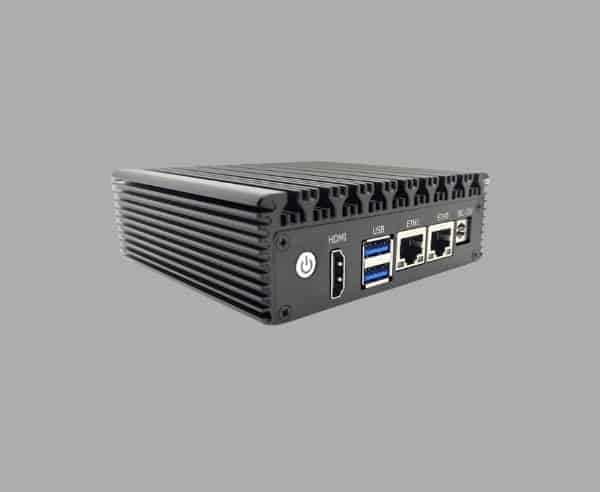

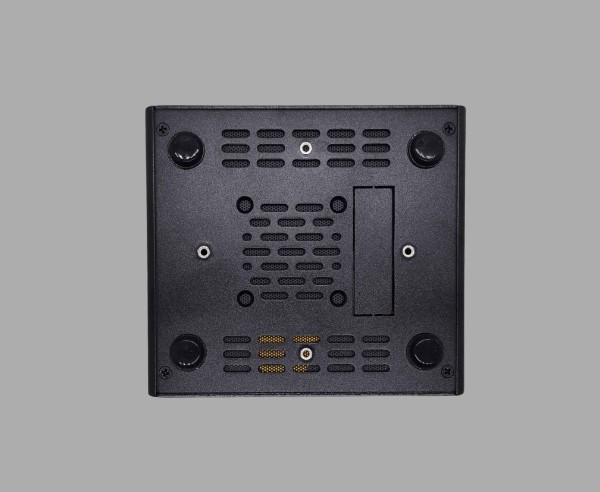

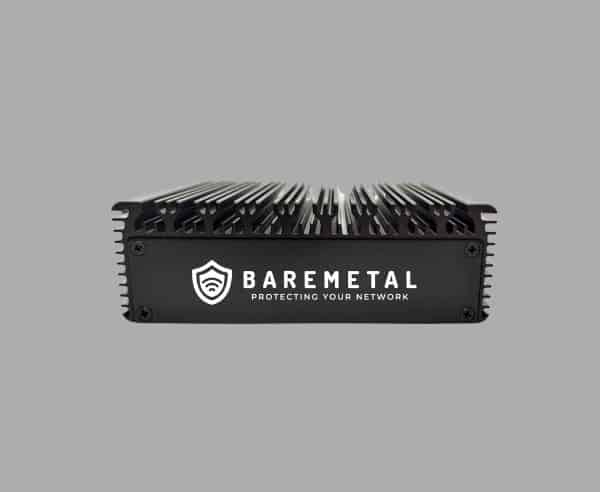

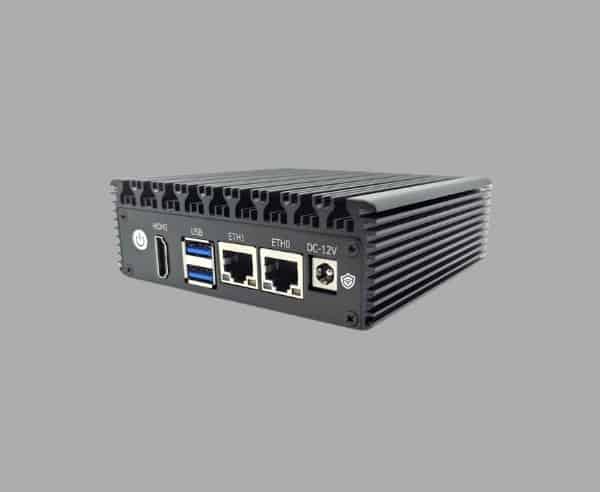

TECHNICAL SPECIFICATIONS
| CPU | Intel Dual Core N3050 1.6GHz up to 2.16GHz with AES-NI |
|---|---|
| CPU Cores | 2 |
| Memory Options | 2GB DDR3L 1600 MHz 1.35v SO-DIMM expandable up to 8GB |
| Storage options | 32GB de SSD mSATA v3.0 |
| Network Interfaces | 2x Gigabit Ethernet RJ45 Realtek 8111H |
| Wireless Wi-Fi | Does not have |
| USB ports | 2 USB v3.0 transfer rate of up to 4.8GB |
| HDMI | 1 HDMI Display |
| Kit Evolution Lan | Compatible |
| Power | Inlet: 1 inner diameter 2.5mm, outer diameter 5.5mm 100-240V, 50-60Hz, 60W AC Input: NBR 14136 (2 PIN) Out: 12V 3A Power cord included, powers on after power outage. |
| Chassi | Metal |
| Dimensions | C 11,2 x L 10 x A 4 cm |
| Cooling | Passive |
| Operating temperature | -10ºC – +70ºC |
| Hardware Warranty | 6 months |
| Certifications | RoHS, CE, FCC |
| Energy consumption | 6W (idle) |
| Weight | 450 grams |
