EASY TO USE
- Installed with pfSense software, ready to use immediately.
- Small and compact so it fits anywhere.
- Easy GUI management. Manage pfSense settings via the web.
LOW TOTAL COST OF OWNERSHIP
- There are no locks or add-ons needed to make the system fully functional.
- No additional usage or resource-based pricing. There are no predefined limits on users, firewall rules, or IPsec tunnels.
- Low energy consumption to save money and be more sustainable.
GROWS WITH YOU
- Flexible configuration and support for VPN, load balancing, reporting and monitoring.
- Simple package management system for adding powerful functions and features.
SECURE REMOTE ACCESS
- Connect via encrypted VPN (Virtual Private Networks) between offices, allow mobile workers to connect securely, or connect to the cloud!
- Use OpenVPN to easily establish VPN connections with other company units.
COMMON USE CASES
- SMB for mid-sized networks
- Small to Medium Branch
- On-Premises Managed Service Provider (MSP) / Managed Security Service Provider (MSSP)
- High-Speed Home or Business Gigabit Connections
- Multiple VPN Connections
SOFTWARE FEATURES
pfSense software is a free, open source firewall and router distribution based on FreeBSD that is functionally competitive with expensive, proprietary commercial firewalls. pfSense software-based appliances can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN Appliance, DHCP Server, DNS Server, or can be configured for other applications and special-purpose devices. Features of this next-generation pfSense security appliance include:
- Stateful packet filtering firewall or pure router
- Per-gateway and per-rule routing policy for failover and load balancing
- Layer 2 Firewall
- Support for IPV6, NAT, BGP
- Captive portal with MAC filtering, RADIUS support, etc.
- VPN: IPsec, OpenVPN, L2TP
- Dynamic DNS client
- Reporting and resource monitoring with real-time information
TECHNICAL SPECIFICATIONS
| CPU | Intel Core i7 13700K (Sixteen-cores, up to 5.4 GHz) |
|---|---|
| CPU Cores | 16 |
| Memory Options | 16GB DDR4 3200 MHz 1.2v DIMM expandable up to 128GB |
| Storage options | 1x M.2 2280 SATA SSD (Max 2TB) – Support HD 2.5 Pol. (HD de Notebook) |
| Network Interfaces | 6x Gigabit Ethernet RJ45 Intel i210-AT 6 lans SFP 10 GB 82599ES |

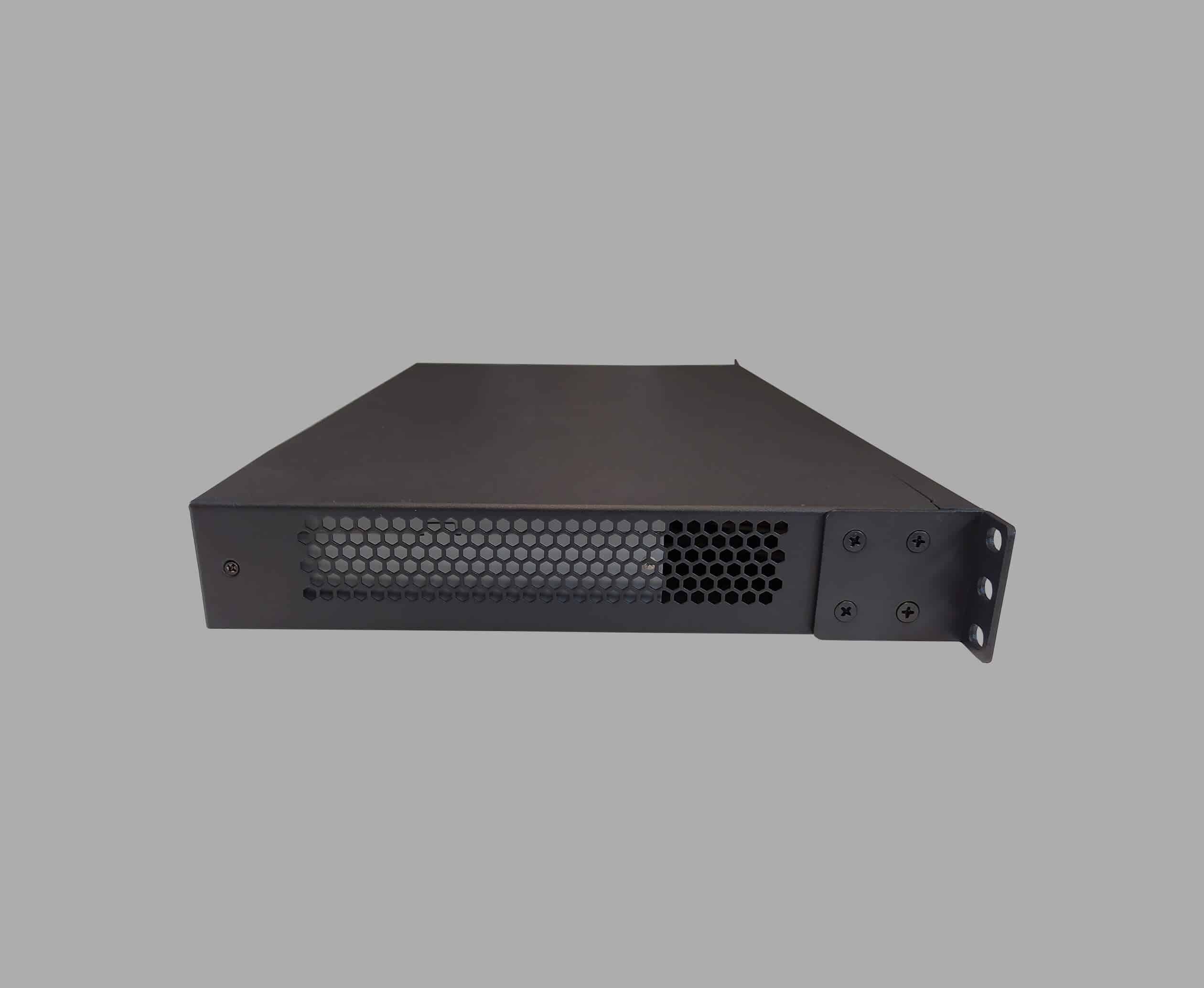

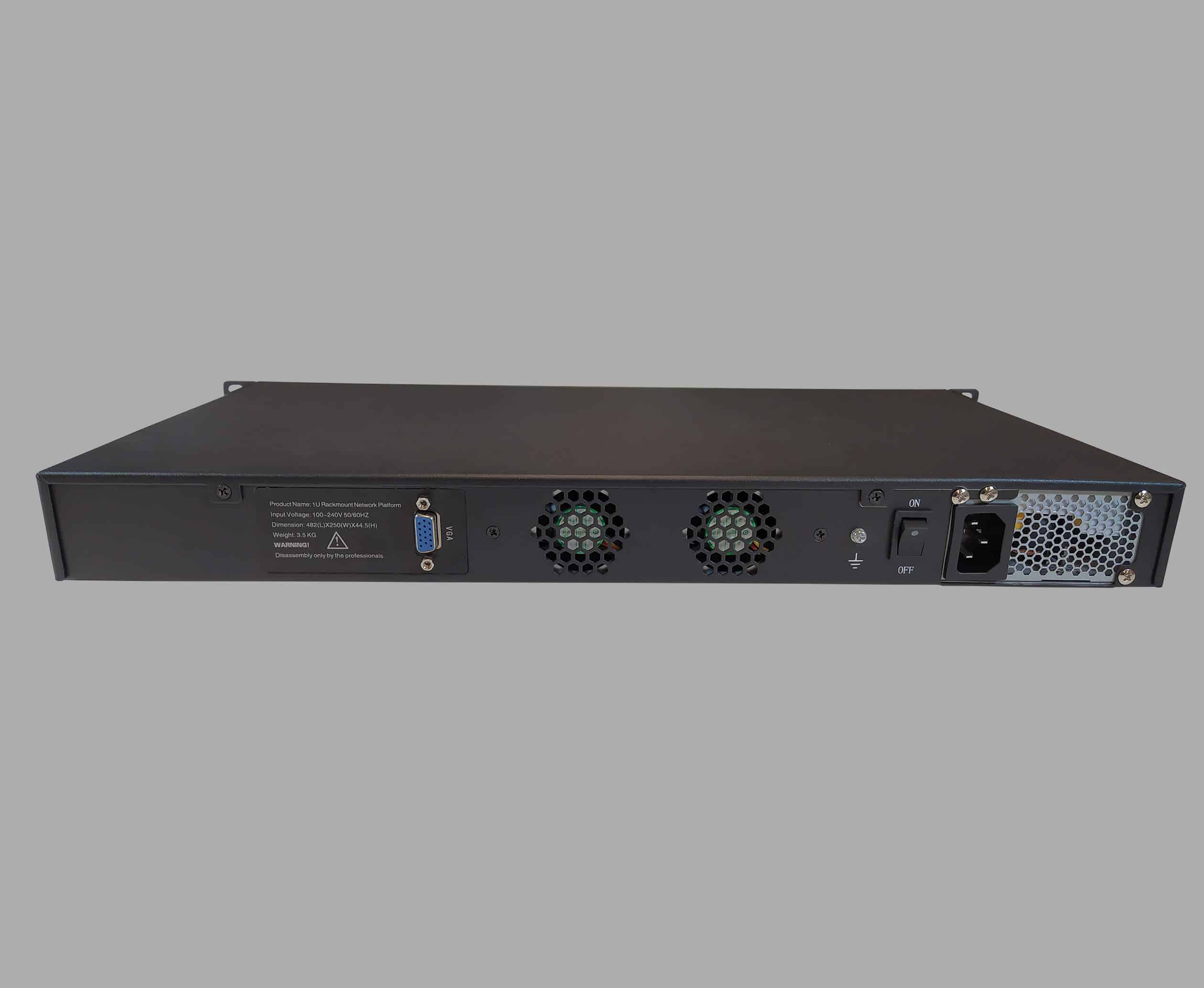

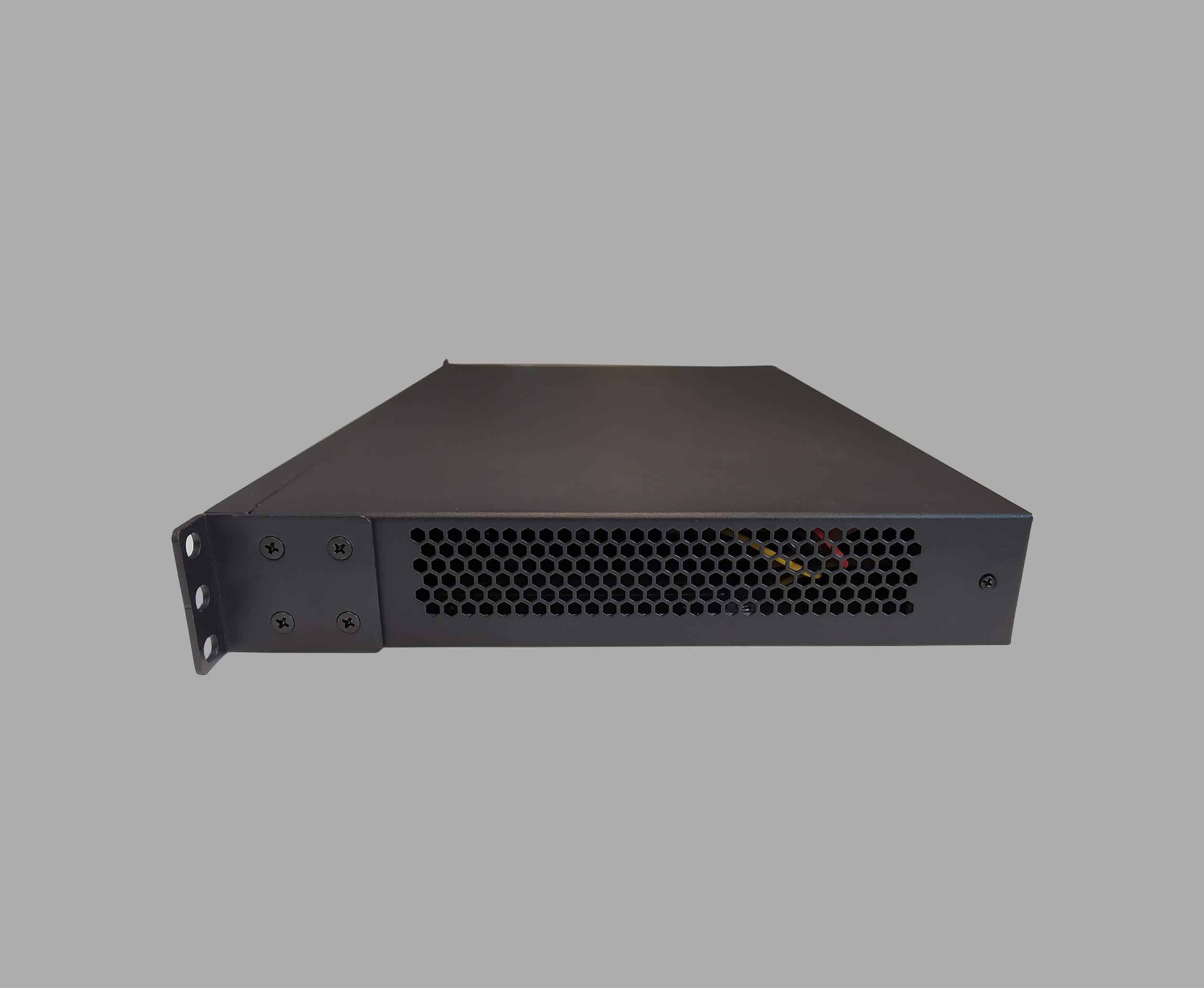

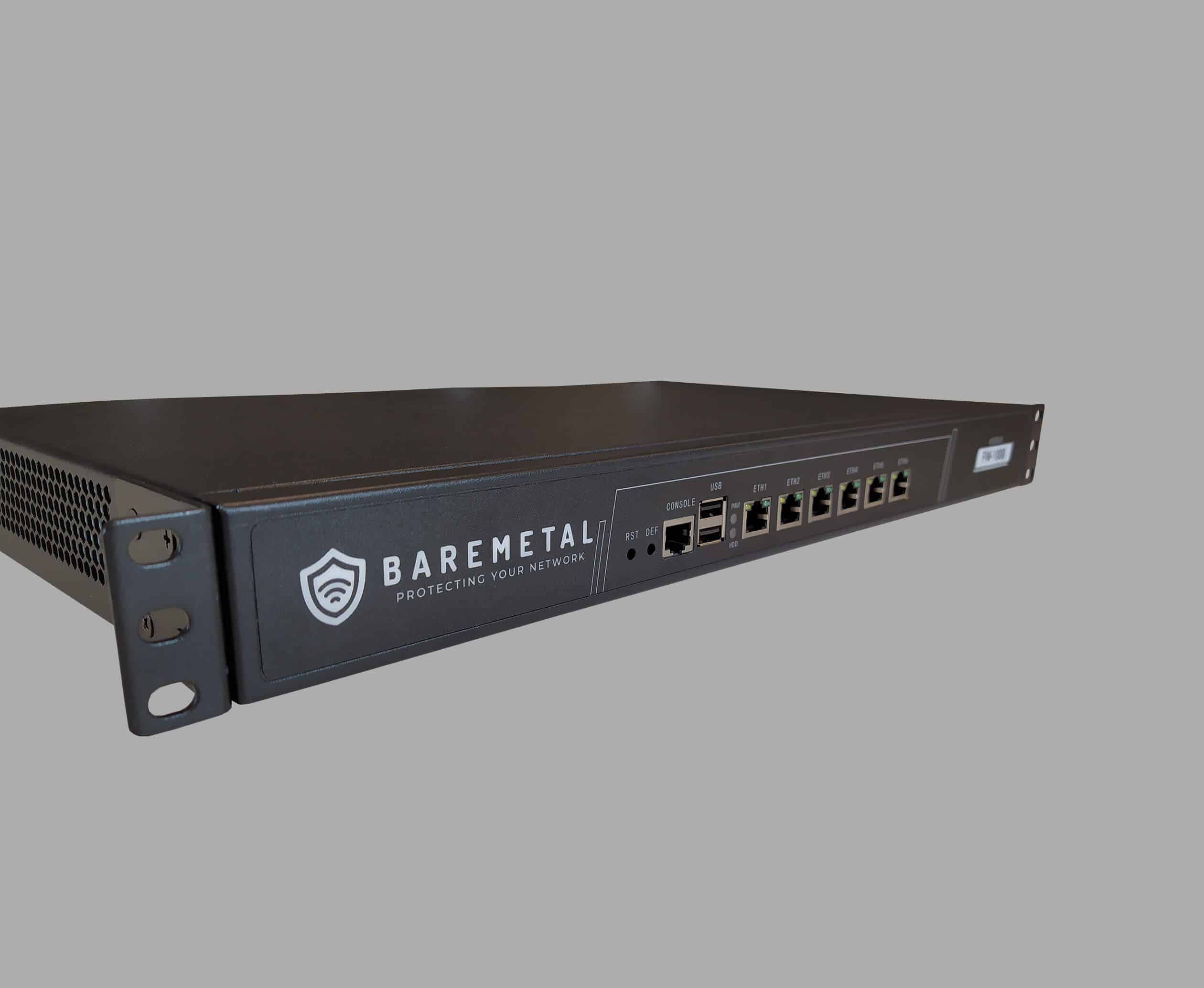

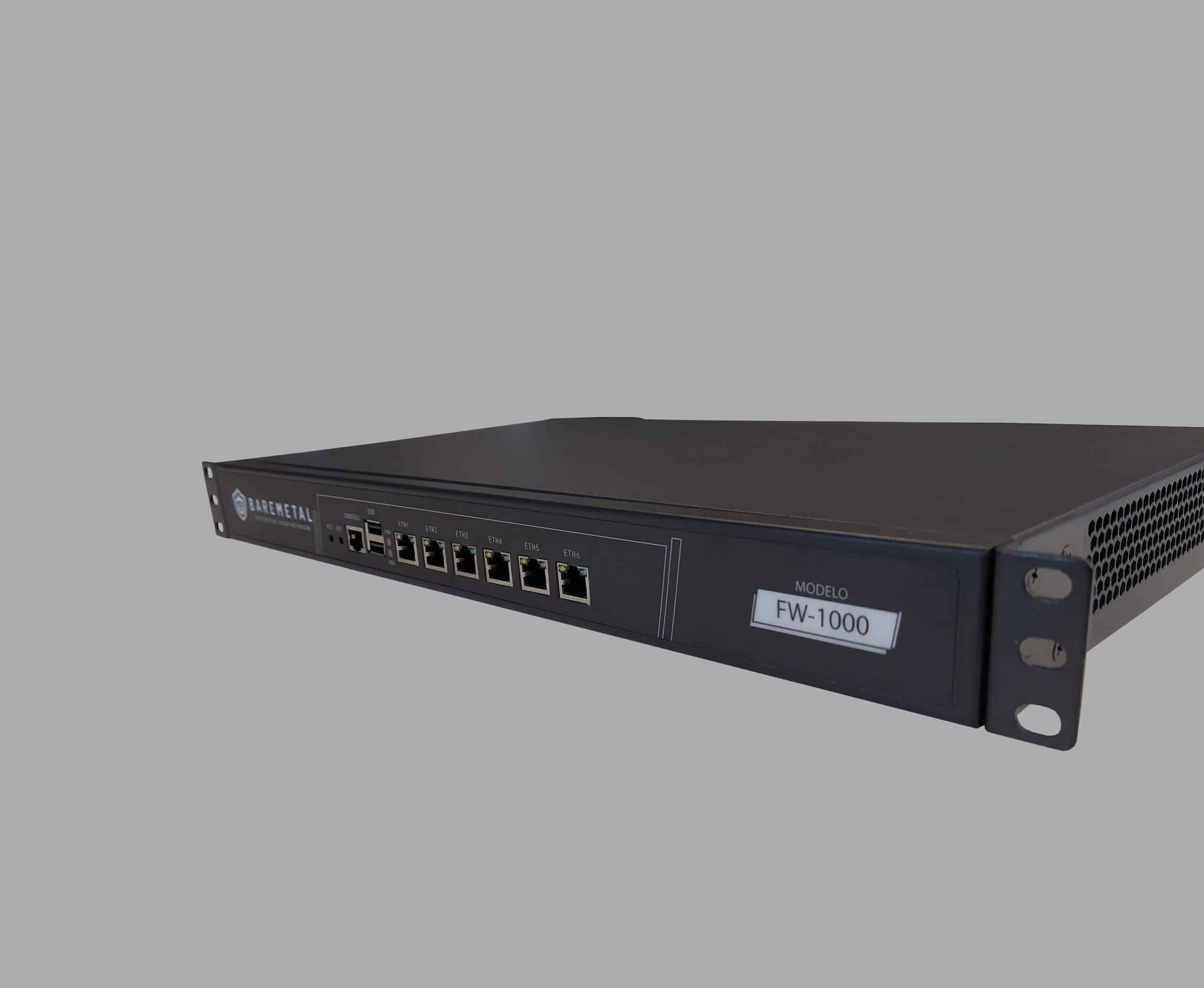

| Format | 1U Rack |
| USB ports | 2x 2.0 USB |
| Console port | RJ45 |
| HDMI | 1 Integrated Intel HD Graphics |
| Power | 110～240V/50～60Hz AC – Idle 5,16~5,52 and Maximum Peak 250 Watts 14A. Power cord included |
| Chassi | Metal |
| Dimensions | 44 x 25 x 4,5 cm |
| Cooling | 2 mini cooler |
| Operating temperature | -10ºC ~ +60ºC |
| Hardware Warranty | 6 Months |
| Certifications | RoHS, CE |
| Energy consumption | 250W (max) |
| Weight | 3,5 KG |
